Click image to view full sizeItem-Name:
Specification:

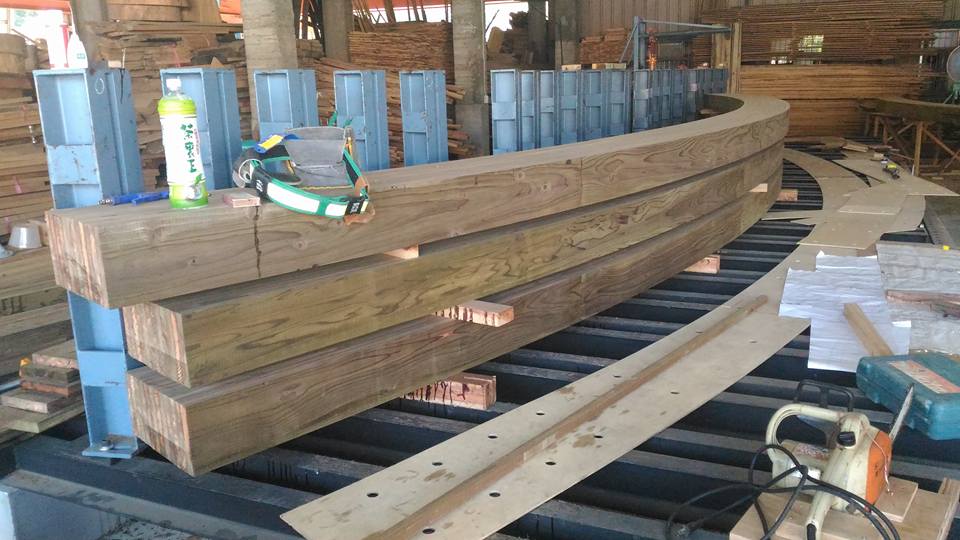

Glued-laminated Structural Timber Machine
Specification:Glued-laminated Structural Timber Machine
MODEL: IF-SB-12000-2500-1000
More-Details:
Glued-laminated Structural Timber Machine
Working Length: 12000mm
Working Width: 2500mm
Working Height: 1000mm
More Products
DOUBLE-SIDE VERTICAL HYDRAULIC COMPOSER
雙面直立式油壓拼板機 DOUBLE-SIDE VERTICAL HYDRAULIC COMPOSER 工作尺寸 / Working size : L=4600mm W=1300mm H=10~150mm 主側壓 / Main press :80Ø×80mmst 一面 / 1 fan 13支/ pcs 中壓 / Middle press : 40Ø×160mmst 一面 / 1 fan 13支 /pcs 側壓 / Side press : 63Ø×550mmst 一面 / 1 fan 02支 /pcs 壓力 / Pressure : 140 kg / cm2 油壓幫浦 / Hydraulic pump : 7 1/2 HP
DOUBLE-SIDE VERTICAL HYDRAULIC COMPOSER-EXTENDED TYPE
雙面直立式油壓拼板機 DOUBLE-SIDE VERTICAL HYDRAULIC COMPOSER 工作尺寸 / Working size : L=12000mm W=1300mm H=250mm 主側壓 / Main press : 100Ø×80mmst 一面 / 1 fan 36支 / pcs 中壓 / Middle press : 40Ø×160mmst 一面 / 1 fan 36支 / pcs 側壓 / Side press : 63Ø×550mmst 一面 / 1 fan 02支 / pcs 壓力 / Pressure : 140 kg / cm2 油壓幫浦 / Hydraulic pump : 10 HP *TWO SECTIONS IN ONE BY CONNECTION.
Cold Press IB2-50-8
木工機械冷壓台 COLD PRESS 工作尺寸 / Working size : L=2440mm W=1220mm H=750~1000mm 總出力 / Max. output : 50 tons 分2段 / Separate 2 sections 油壓缸 / Hydraulic cylinder : 80Ø×4支/ pcs 行程 / Stroke : 250mmst 最大開距 / Max. working high : 1000mm 幫浦出力 / Pump output : 140 kg/cm2 油壓幫浦 / Hydraulic pump : 5HP 上壓板 / Pressing plates : 1200×1200
Chain Type Glue Spreader
The chain conveyor type Glue Spreader is designed for automatic continuous gluing operations. When the conveyor starts running, the Work piece moves over the gluing roller, spreading glue on the work piece bottom. The AN-030 glue spreader had 3M of length machine (5M length is optional) and 400mm working width. Custom conveyor lengths are available upon request. The gluing and doctor rollers’ gap is adjustable to varying glue film thickness on workpiece. After the job is accomplished, the stainless steel glue pan and effective grooved chrome surface steel roller can easily be removed for cleaning. Single side & double side gluer upon request. Special specifications can be designed and manufactured upon request
Roller Type Glue Spreader - Single & Double Side
Roller type glue spreader is designed and manufactured for uniform gluing with maximum simplicity and minimum trouble. The glue spreader consists of smooth steel gluing roller and doctor roller. Gap between gluing and doctor rollers is adjustable to varying glue film thickness on the workpiece. Roller surfaces are precision ground and hardened. This series of glue spreader provides 3 models with choices of 24”, 36” and 48” widths. Additional options are double or single slide gluing to meet your production requirements. Special specifications can be designed and manufactured upon request
Mini Type Manual Glue Spreader
Model : AN-010 Working width：250mm Special specifications can be designed and manufactured upon request
Automatic Mixed Gluing Machine (Simply Type)
Model : FE-024-G 2 Inch Single side Working width 2 Inch Working max thickness 60mm Motor : 2HP 4P Speed Reducers : 80# 1/30 Electroplate roller : 180Ø × 700L × 1150Ø × 700L × 1 Rubber roller : 180Ø × 700L × 1 ★ Attach AUTOMATED MIXED CLUING MACHINE ★ Special specifications can be designed and manufactured upon request
Fully Automatic Clamp Carrier (IFFA)
