Click image to view full sizeItem-Name:
Specification:

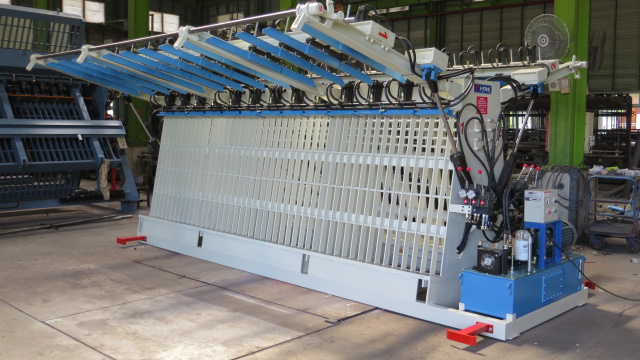

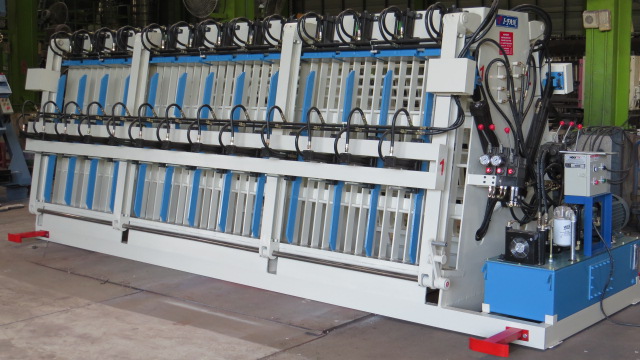

DOUBLE-SIDE VERTICAL HYDRAULIC COMPOSER
Specification:DOUBLE-SIDE VERTICAL HYDRAULIC COMPOSER
Load in 1*20CY container
More-Details:
 |
|
雙面直立式油壓拼板機
DOUBLE-SIDE VERTICAL HYDRAULIC COMPOSER
工作尺寸 / Working size :
L=4600mm W=1300mm H=10~150mm
主側壓 / Main press :80Ø×80mmst
一面 / 1 fan 13支/ pcs
中壓 / Middle press : 40Ø×160mmst
一面 / 1 fan 13支 /pcs
側壓 / Side press : 63Ø×550mmst
一面 / 1 fan 02支 /pcs
壓力 / Pressure : 140 kg / cm2
油壓幫浦 / Hydraulic pump : 7 1/2 HP
